Description

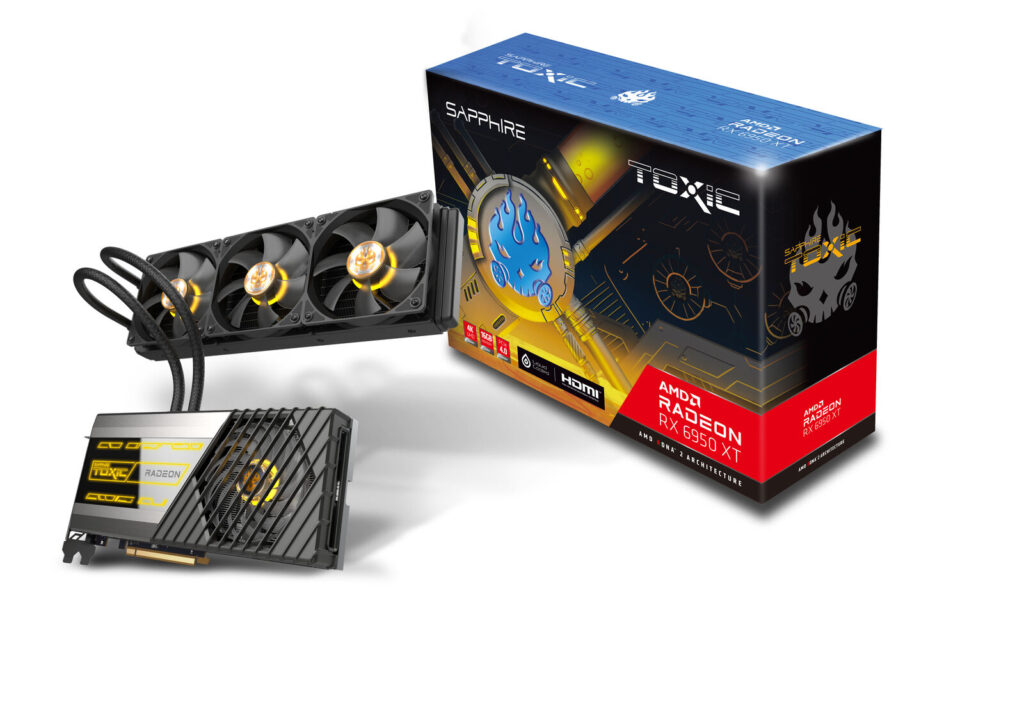

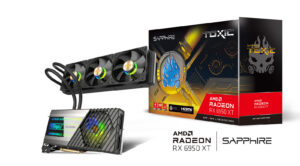

Sapphire 11317-01-20G Toxic AMD Radeon RX 6950 XT Liquid Cooled PCIe 4.0 Gaming Graphics Card with 16GB GDDR6 (Renewed)
Factory Refurbished, includes 30 day warranty. Unit ships in OEM brown box, looks and runs like new.
The water cooler is integrated in this unit and the water cooler fans are powered from the GPU. Only requires PCIe power connections for the GPU.
GPU
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2532 MHz
- Game Clock: Up to 2310 MHz
OC BIOS Up to 2565 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
Infinity Cache
Ray Accelerators
Memory Size/Bus
Memory Clock
- BIOS Default: 18 Gbps Effective
Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x16
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- Dual UEFI
Game Index
4K
Sapphire Features
- All-In-One Liquid Cooler with 360mm Radiator
- Dual BIOS
- OC BIOS
- Max Boost
- TriXX Software Switch
- Premium Digital Power Design
- Fuse Protection
- High TG Copper PCB
- Optimized Composite Heatpipe
- Intelligent Fan Control
- Precision Fan Control
- Backplate with ARGB
- Metal Backplate with Thermal Pad
- ARGB Fans
- ARGB AIO Cooler Fans
- Dual Ball Bearing Fans
- Hybrid Fan Blade on VRM/Memory Cooling
- Integrated VRM/Memory Cooling Module
- TriXX Supported
- Fan Check
- Fan Quick Connect
- TriXX Boost
- NITRO Glow
- External RGB LED MB Synchronization
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- 7nm GPU
- GDDR6 Memory
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- AMD FidelityFX™ Super Resolution (FSR)
- AMD Radeon™ Super Resolution
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
- High Performance 4K Gaming
Cooling
- AIO Liquid Cooling with 360 mm radiator
- Two-Ball Bearing Fans
Form Factor
- 2.5 slot, ATX + 360mm Radiator
- Board 270(L)x 130(W)x 45 (H)mm
- Hex / Radiator 394(L) x 120(W) x 52.5 (H)mm
- Standard Rubber Tubing, 470(L)mm
Power Consumption
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 850 Watt Power Supply
- 2 x 8-pin + 1 x 6-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
